Ultravision's Most Advanced 4×4 Driving Lights

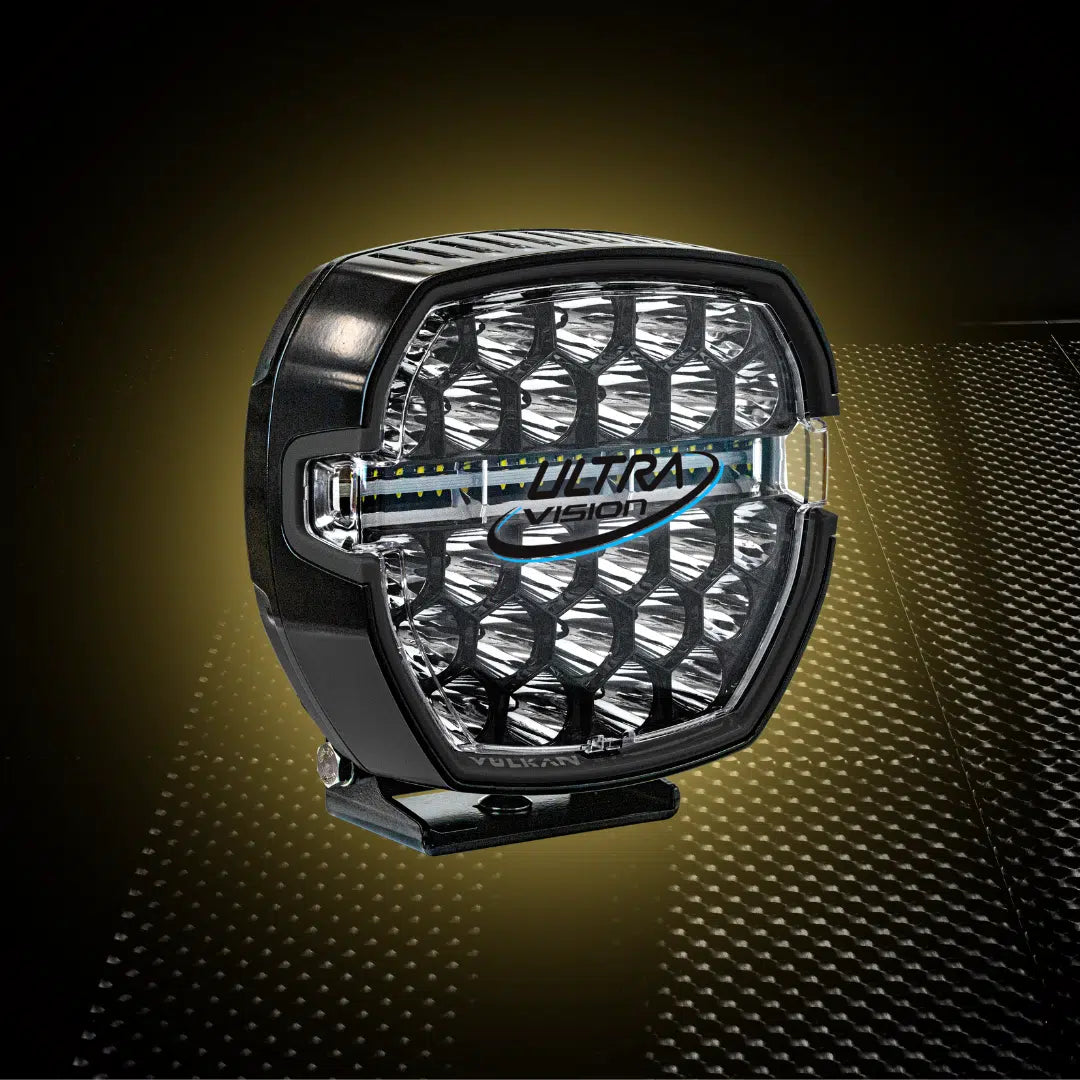

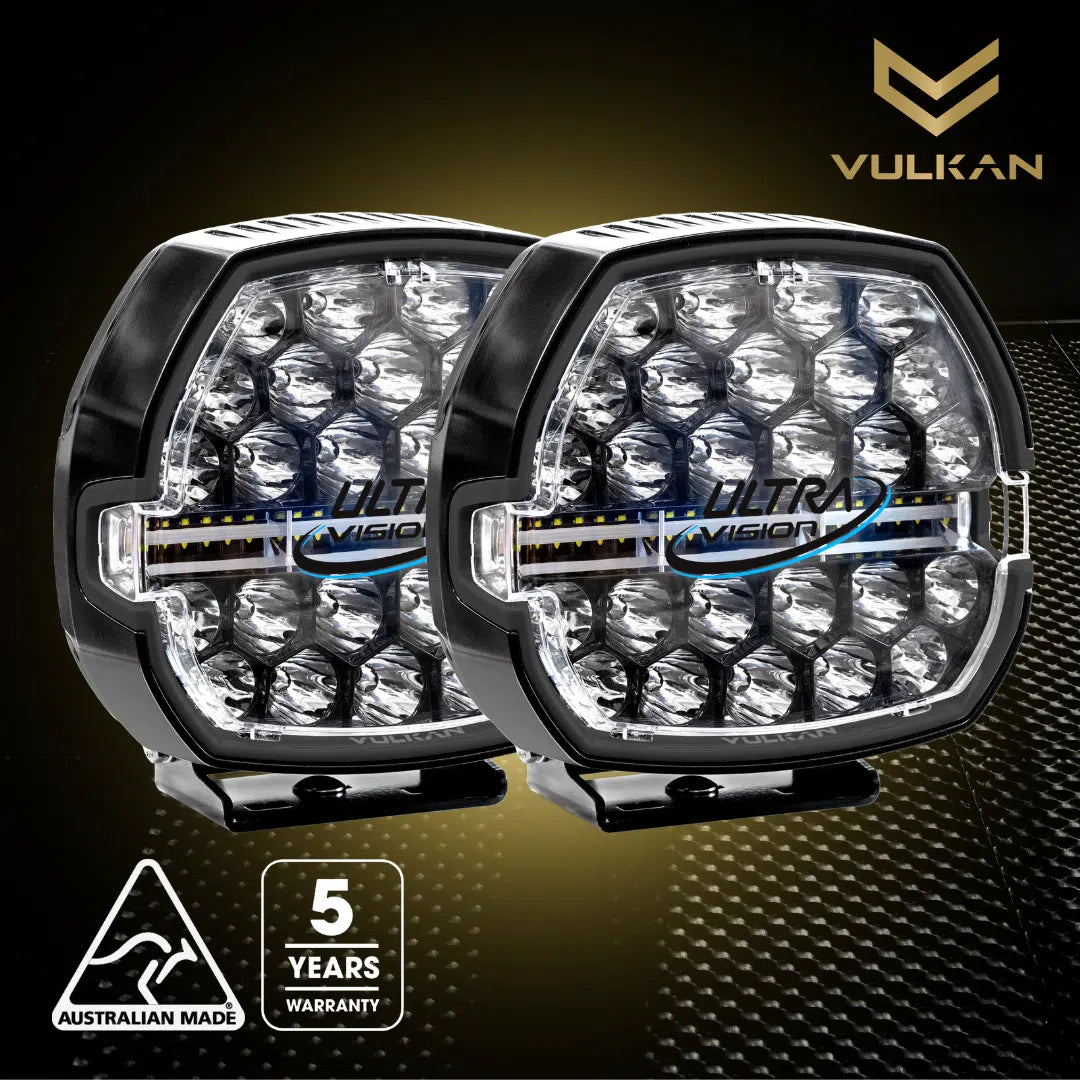

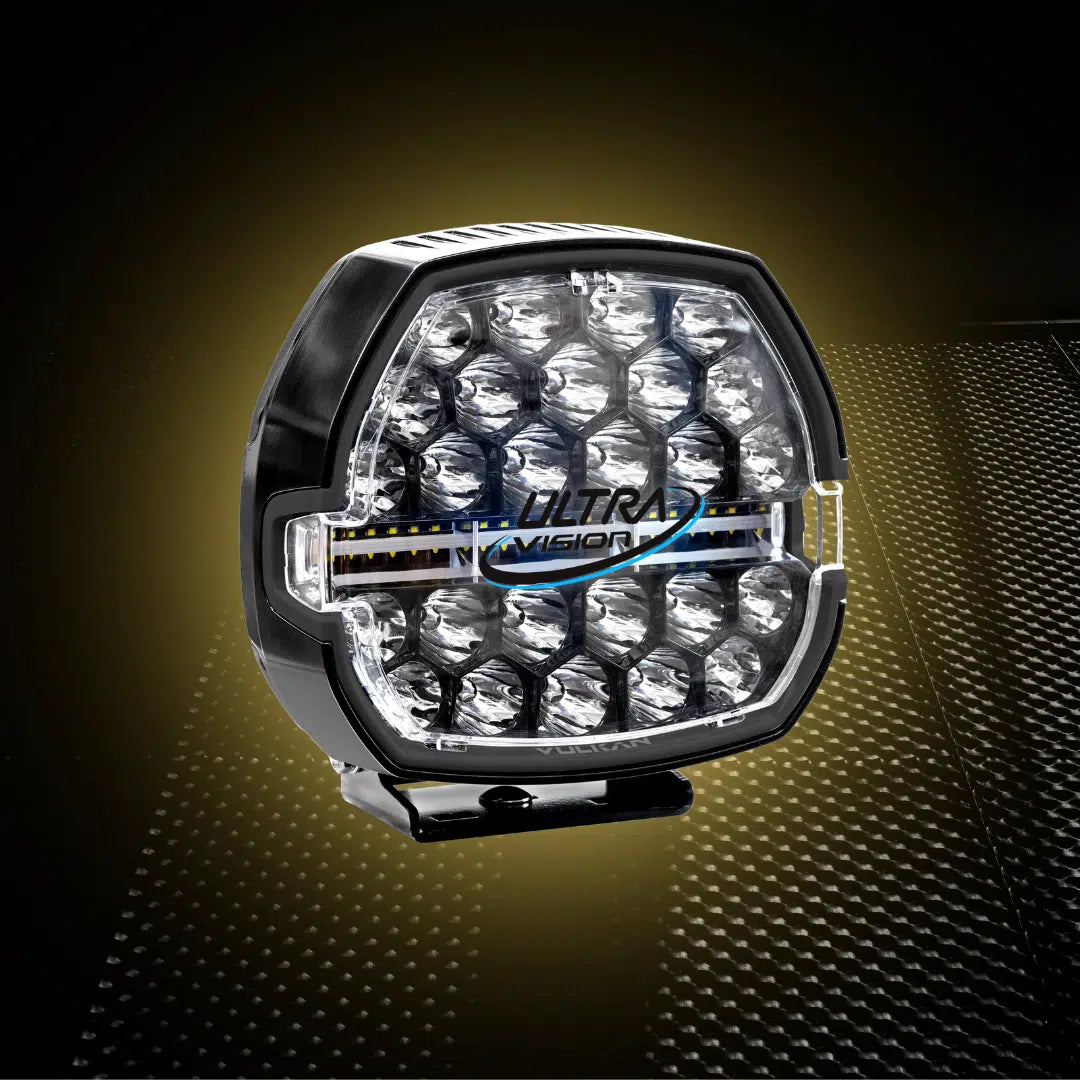

The Vulkan LED driving light from Ultra Vision Lighting pushes the boundaries of what is possible for 4x4 lighting.
With a striking look, these driving lights feature class-leading Contrl® Optics. They also include a newly designed Widr® Optic.
A strategic cut-out design maximises beam width. Combined with 44 Osram LEDs, you get serious off-road performance.
The beam is fully adjustable. This lets you customise the light output to suit your specific environment.
It is the only light on the market that lets you:
- Set your beam distance from 90m to 1735m of light
- Dial in the beam width from 90m to 235m
Experience ultimate power with total control for your vehicle.
To find out more wiring and technical information, please refer to the instructions here.
- Our most advanced driving light
- Adjustable beam distance & width
- Set your beam distance between 220m & 1735m
- Adjust beam width between 90m & 235m
- Striking design, can be mounted either way up
- Black brackets for a slick look
- Lifetime warranty on all brackets
- Designed and Made in Australia for the toughest environments on earth
- Available with either 4500k or 5700k Colour Temperature
- 5 Year Warranty and the option to extend by a further year
- A wiring harness and anti-theft nuts are included free of charge
How the Vulkan came to life
Take a look at this video. We explain the process behind the conception and design of this lighting system.
Product Specification
| SPECIFICATIONS | VULKAN |
|---|---|
| Wattage | 95w – 175w (per lamp) |
| Light Source | 44 x OSRAM LED’s (per lamp) |
| Light Output – Raw | 12,352 – 17,193 Lumens (per pair) |
| Light Output – Effective | 6,422 – 10,644 Lumens (per pair) |
| Voltage | 9-36V |
| Current Draw | 13A @ 13.5V (per pair) |
| Operating Temperature | -40°C to +75°C |
| Waterproof rating | IP68 |
| Connector Type Plugs | 6 Pin Heavy Duty Deutsch Plug |
| Housing | Die-Cast Alloy |
| Outer Lens Construction | Hard Coat PC |

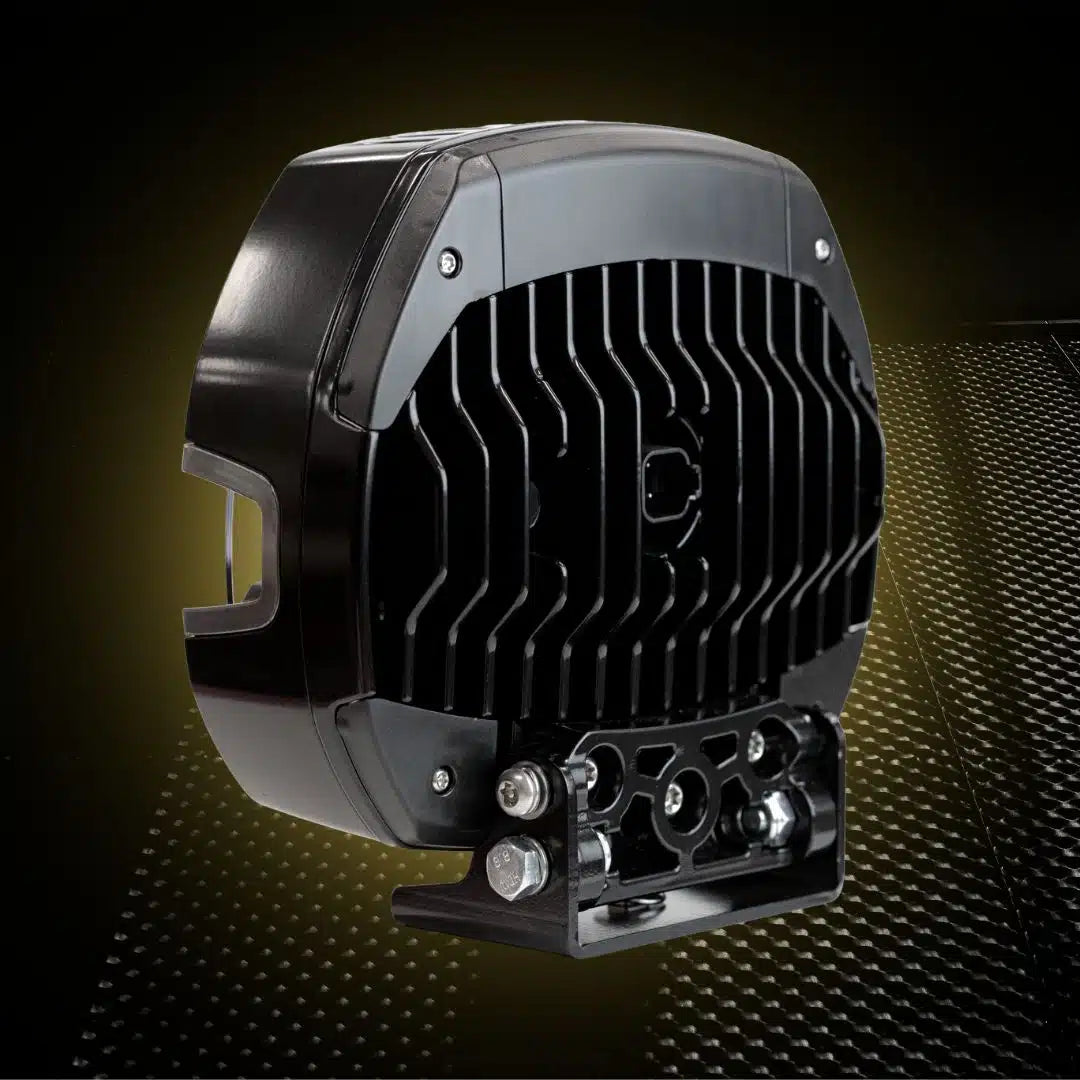

| Bracket | 4mm Stainless Steel |
| Colour Temperature | 4500K or 5700K |
| Lifespan | 50,000 Hours |

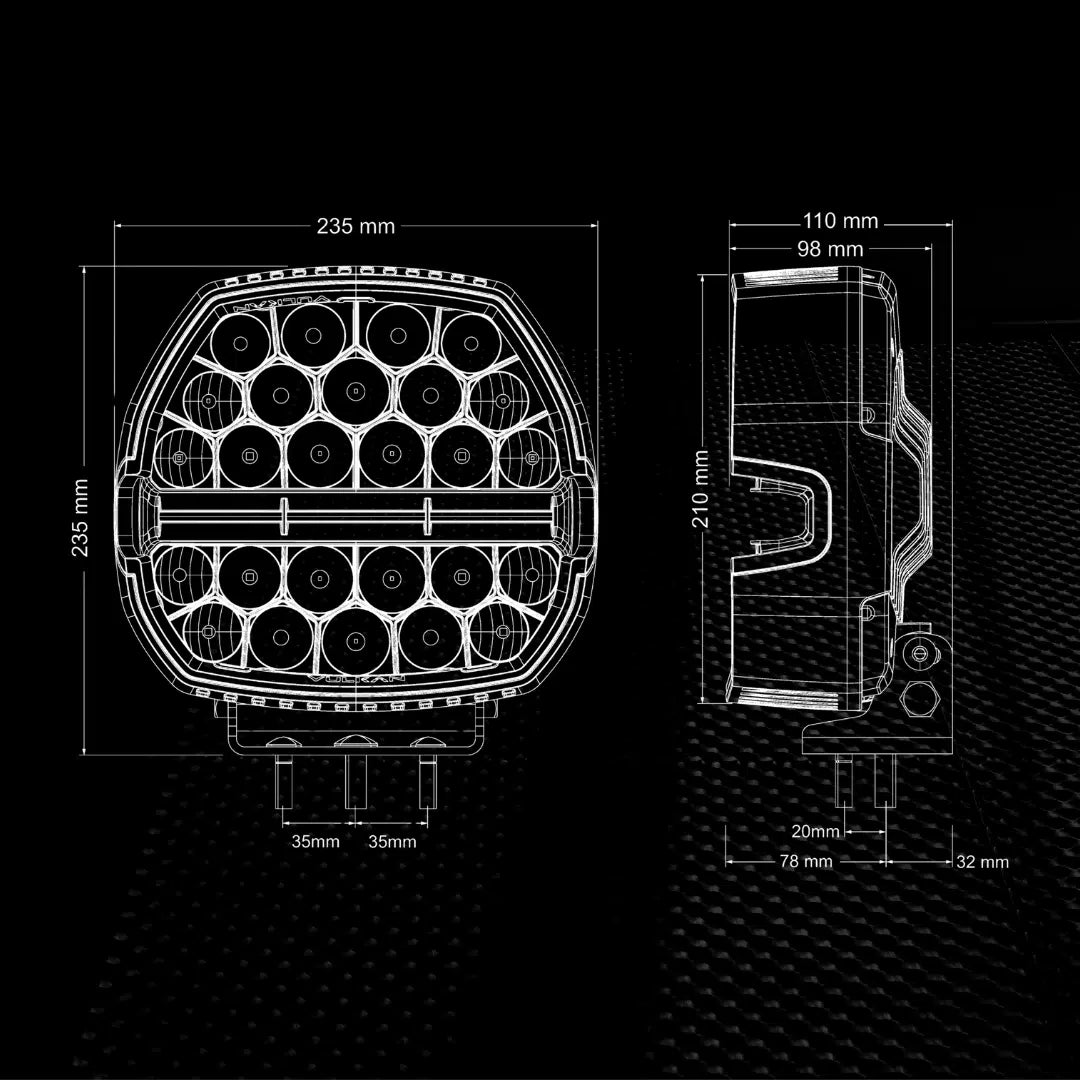

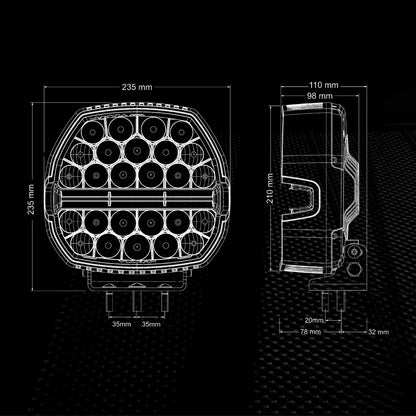

| Diameter | 235mm |
| Net Weight | 3.2kg (per lamp) |
| Mounting Suitable | Base mount |
| Warranty | 5 Years |
| Wiring Harness & Switch Included | Yes |
| Brand: | Ultra Vision Lighting |
| EMC Rating | CISPR 25 Class 3 |
| Manufacturer: | Ultra Vision Lighting |
| PART NUMBERS | |
| 5700K (Single lamp) | VUL9DL5/SGL |
| 4500K (Single lamp) | VUL9DL4/SGL |
| 5700K (Pair) | VUL9DL5/PR |
| 4500K (Pair) | VUL9DL4/PR |

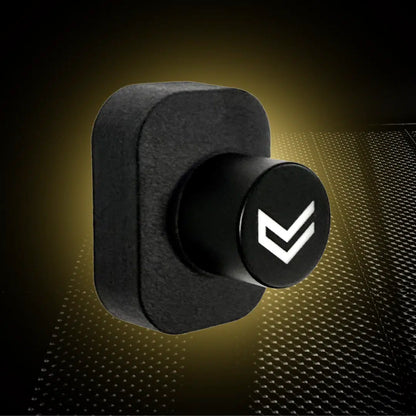

VULKAN SWITCH

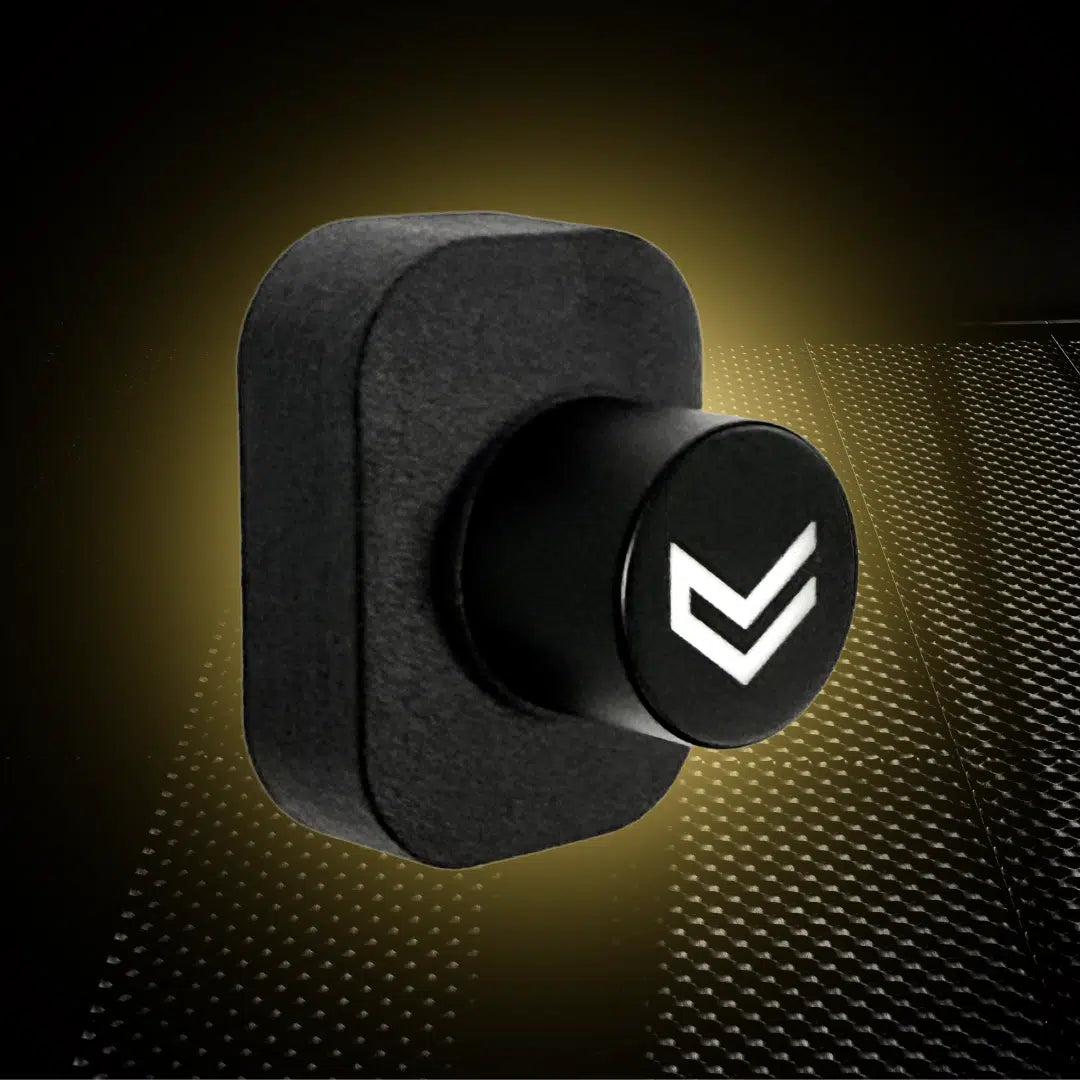

The VULKAN Switch is a rotary encoder control unit. It operates the adaptable beam system from Ultravision.
Adjust your beam pattern from wide flood illumination to concentrated spot lighting with ease.
The switch features an illuminated ring. This provides colour-coded feedback on the current status.
Key features:
- Rotary encoder with tactile detent feedback for precise adjustment
- Push-to-toggle function for switching the lights on and off
- Illuminated Logo Ring with colour coded status indication
- Can bus connectivity for reliable communication with the system
- Memory function that recalls previous settings when high beam is active
Get more information on how to use the VULKAN Switch in our information booklet here.
