Redarc BCDC Alpha100 R DC Battery Manager
Redarc BCDC Alpha100 R DC Battery Manager
Couldn't load pickup availability
Stay powered up wherever your adventure takes you with the Alpha100. Featuring 100A of advanced charging, it ensures you stay charged.
The REDARC BCDC Alpha100 R uses a high-performance DCDC charger. It keeps both start and secondary batteries charged via solar or alternator.
The built-in Green Power Priority™ minimises alternator load. By prioritising solar energy, the system helps you save fuel during your travels.
When paired with the Smart Battery Monitor, the Alpha100 unit distinguishes between current sent to your battery and the loads in your system.
If Charge Current is set below maximum, the charger supplies system loads directly. This reduces battery reliance and extends overall lifespan.
INTELLIGENT ALPHA100 CHARGING
Unlike standard chargers, this Alpha100 unit adjusts charge modes in real time. It functions as a true battery manager to maximise efficiency.
The system can also seamlessly revive and charge a fully flattened lithium battery, giving you peace of mind in the wild during long trips.
START BATTERY CHARGING
Recover a flat start battery quickly to get back on the road. It provides the power needed to safely start your vehicle in no time at all.
Don’t let excess solar power go to waste. The Alpha100 system automatically tops up the start battery once the secondary battery is full.
SIMPLIFIED INSTALL

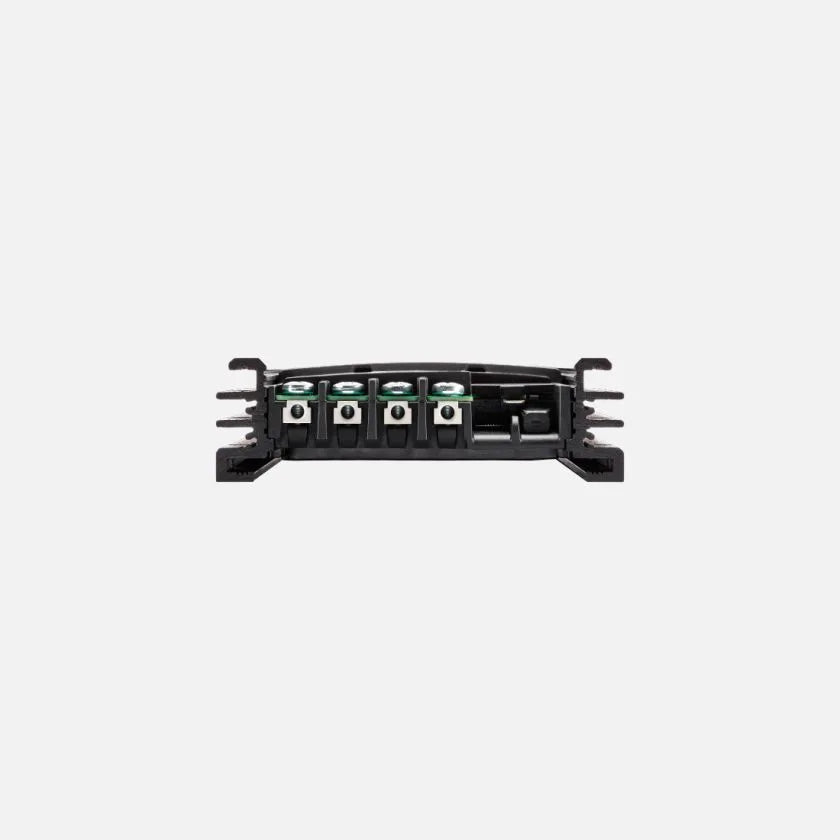

Installation is a breeze thanks to secure screw connections. There is no need for solder or tricky wiring configurations for the user.
ADVANCED MONITORING
Track your system via your mobile device. Access state of charge percentages, time remaining, and real-time charger performance for ease.
TOTAL SYSTEM CONNECTIVITY
Add the TVMS Rogue or TVMS Prime for seamless RedVision integration.
FEATURES
- 100A Charging from DC and solar power
- Compatible with common automotive batteries, including heated and standard Lithium (LiFePO4)
- Screw connections for easy installation
- Use excess solar to charge back to your start battery
- Recover a flat start battery in 15 minutes via the smartphone app
- Remote monitoring and control via RedVision app with Bluetooth®
- Input current limiting to protect alternators in hybrid and electric vehicles
- Future-proof charging with over-the-air updates
| gtin_barcode | 9338628010585 |
|---|---|
| Solar Input Voltage Range | 9 – 48 VDC |
| Nominal Output Voltage | 12V |
| Nominal Current Rating | 100A |
| Operating Temperature | –20°C to 60°C (–4°F to 140°F) |
| Weight | 2.2kg (4.85lbs) |
| height | 50mm (2") |
| width | 146mm (5.57") |
| depth | length | 385mm (15.15") |
| Warranty | 2 Years |
