Renogy Smart Distribution Box (REQUIRES ONE CORE)
AU$839.00

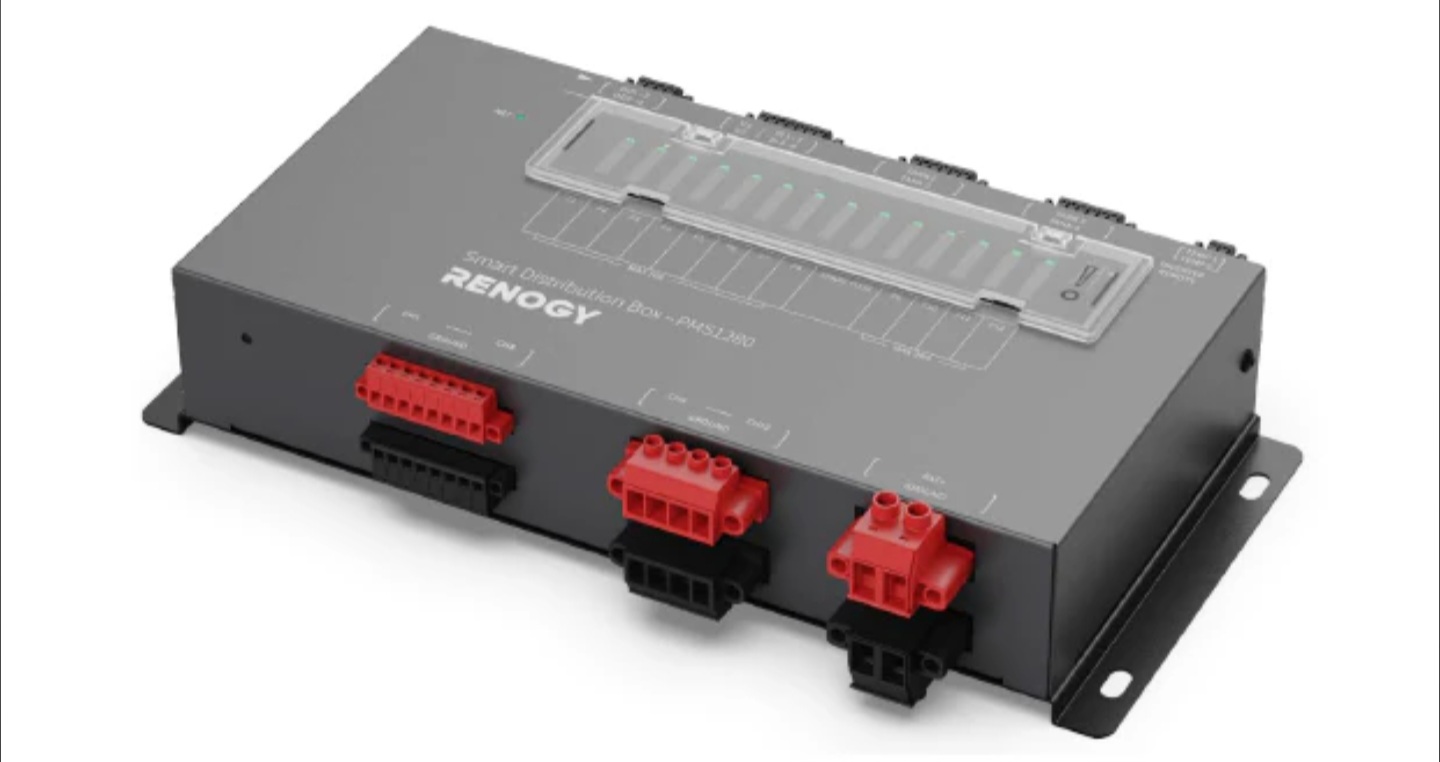

Smart Distribution Box
If you already have a Renogy One Core add wireless switching straight from your phone!
The Renogy Vision 7" can be purchased separately for a touch screen display but is not required.

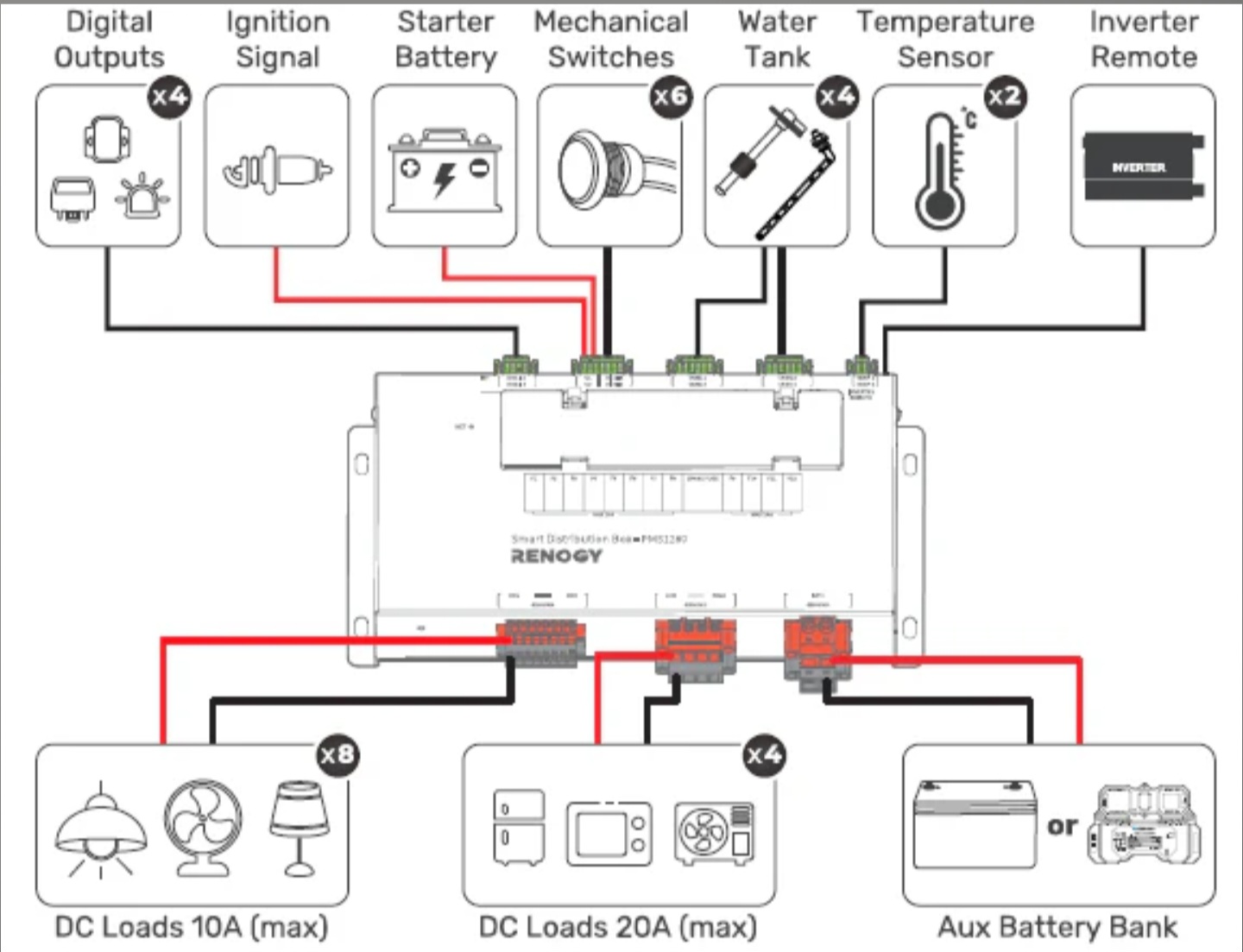

The Smart Distribution Box is a DC power distribution control device designed for RV, total camper vehicle and motorhome scenarios.
It integrates functions such as multi-channel water tank, temperature sensors, voltage detection, DC loads control and more. It integrates CAN communication and supports Renogy ONE series and Renogy ONE Vision to display and control.
KEY FEATURES
Advanced user-programmable functions
Automatic low-voltage cut-outs and high-voltage cut-ins
Automatic switching, load shedding, Smart Scene
Communicate with Renogy ONE Core and App to remote monitoring, control and Alarms and troubleshooting
Total 80A input current, controls 12 DC loads each with built-in current sensors
Pre-fused outputs with blown fuse indicators
Model | RSHCB-C02P-G1 |
System Voltage | 12 / 24 VDC |
Power Consumption | 1.2W @12 VDC Standby |
Maximum Load Current | 80 A |
Load Outputs | 8 x 10A Max / 4 x 20A Max |
Communication | CAN |
Analog Voltage Measurement | 0 to 60 V, -+0.2 V |
Current Measurement | -+2% |
Temperature Measurement | -20 to 80c, +-3c |
Water Tank Sensors | Resistive Sensors or Conductive Sensors x 4 |
Dry Contact Signals | Input Signals x 6, Output Signals x 4 |
Inverter Remote | RJ12 port |
Operating Temperature | -20c to 50c |
Operating Humidity | 0% to 95% RH |
Operating Altitudes | Below 5000 m |

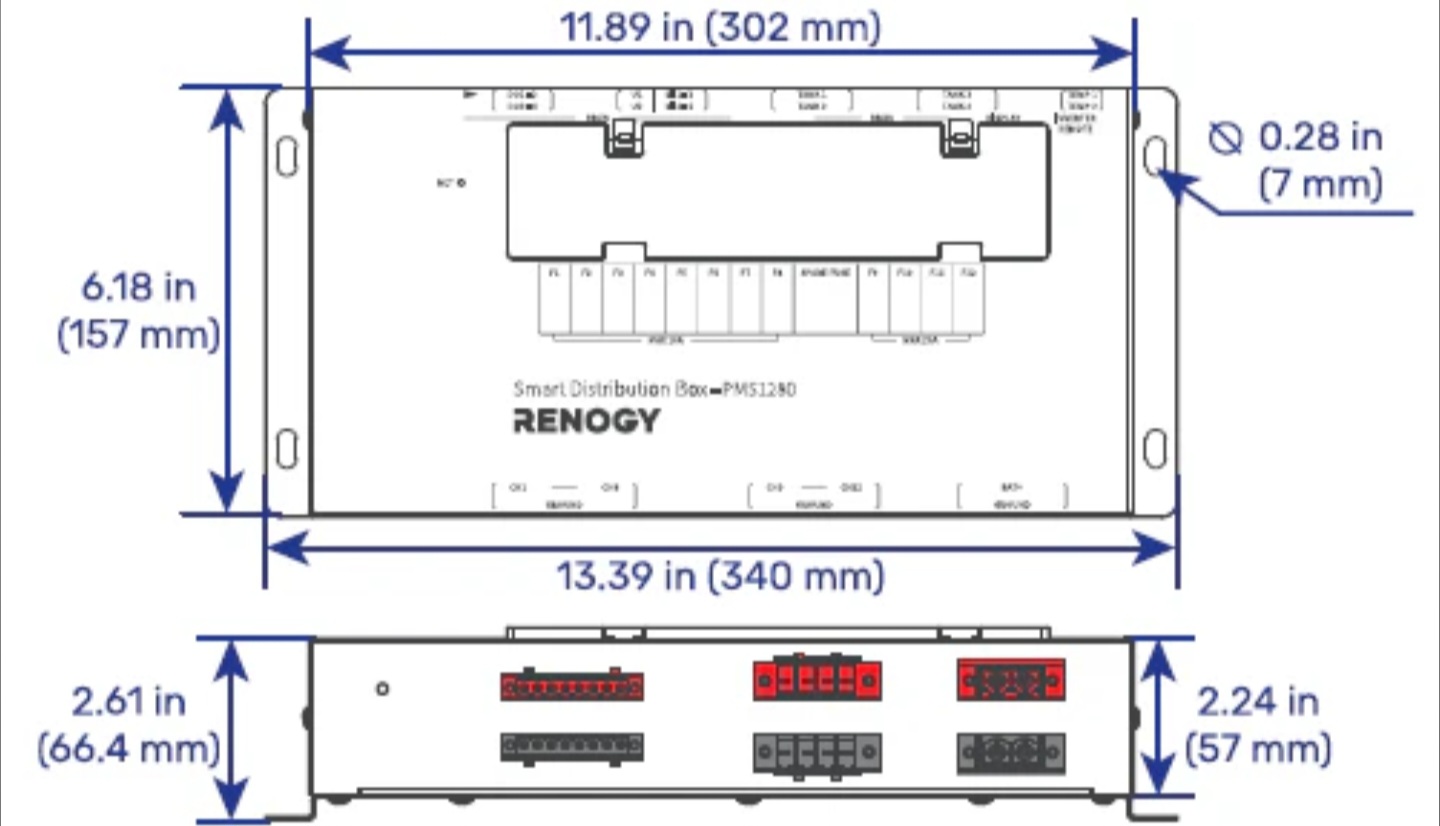

Dimensions | 302 x 157 x 57.2 mm |
Weight | 1980g |
Certifications | RCM, RoSH |
Warranty | 5 Years |
