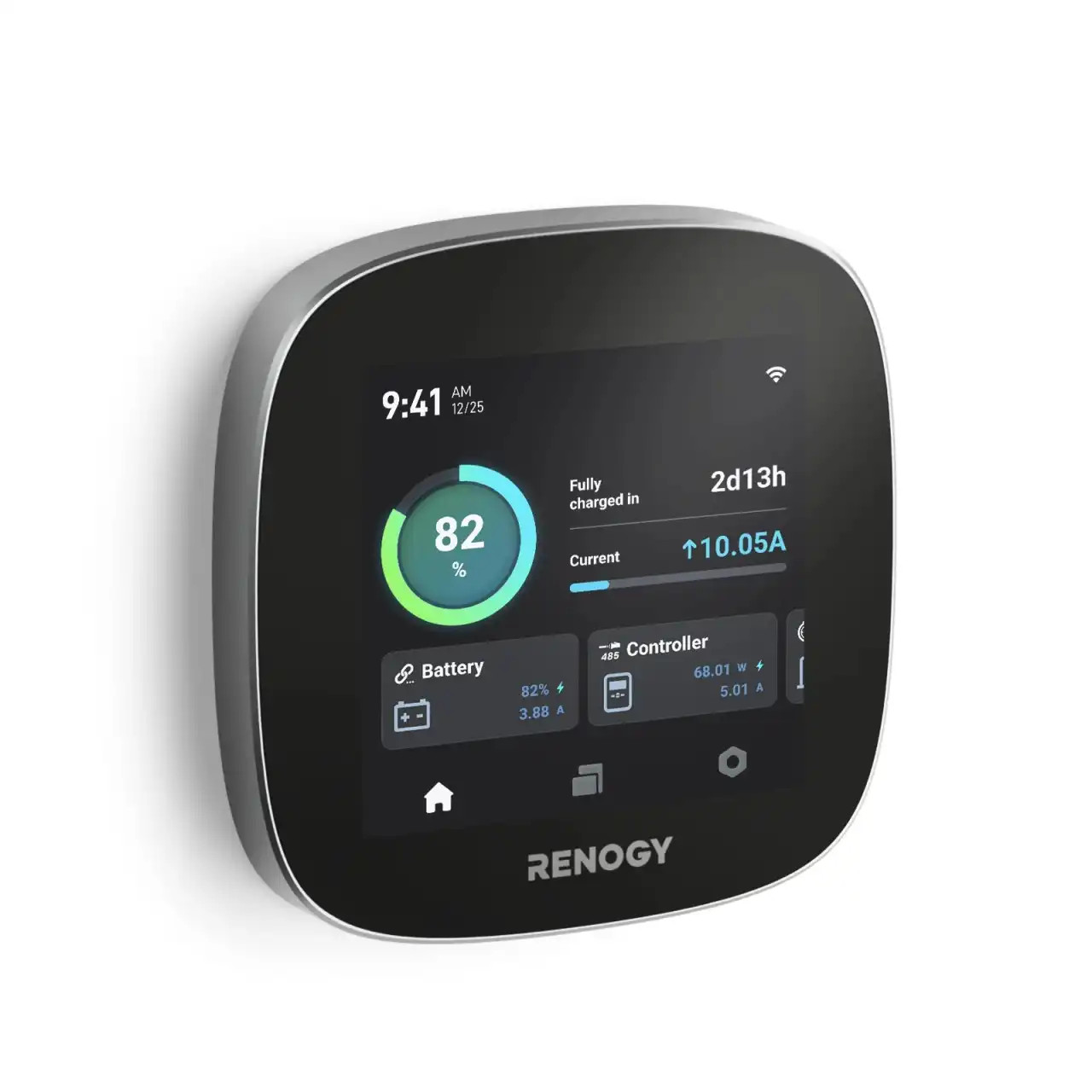

RENOGY ONE Core
AU$299.99
Proven, Trusted Choice for Customers Worldwide
Hear first-hand from satisfied users about the ONE Core's incredible reliability and convenience.

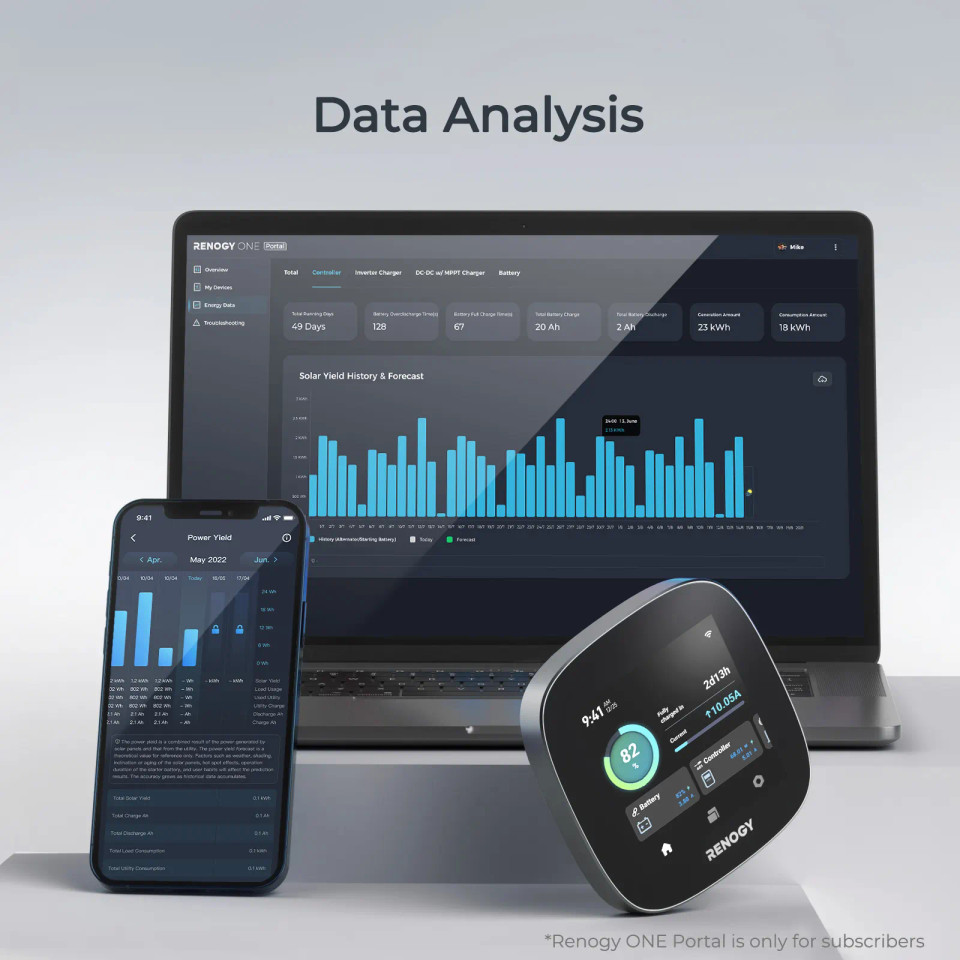

Energy Data Analysis
Remote Monitoring
Adaptable Devices
Energy efficiency at your fingertips
Dedicated to off-gridders, Renogy ONE Core helps save money and reduce your carbon footprint by tracking energy generation and consumption.

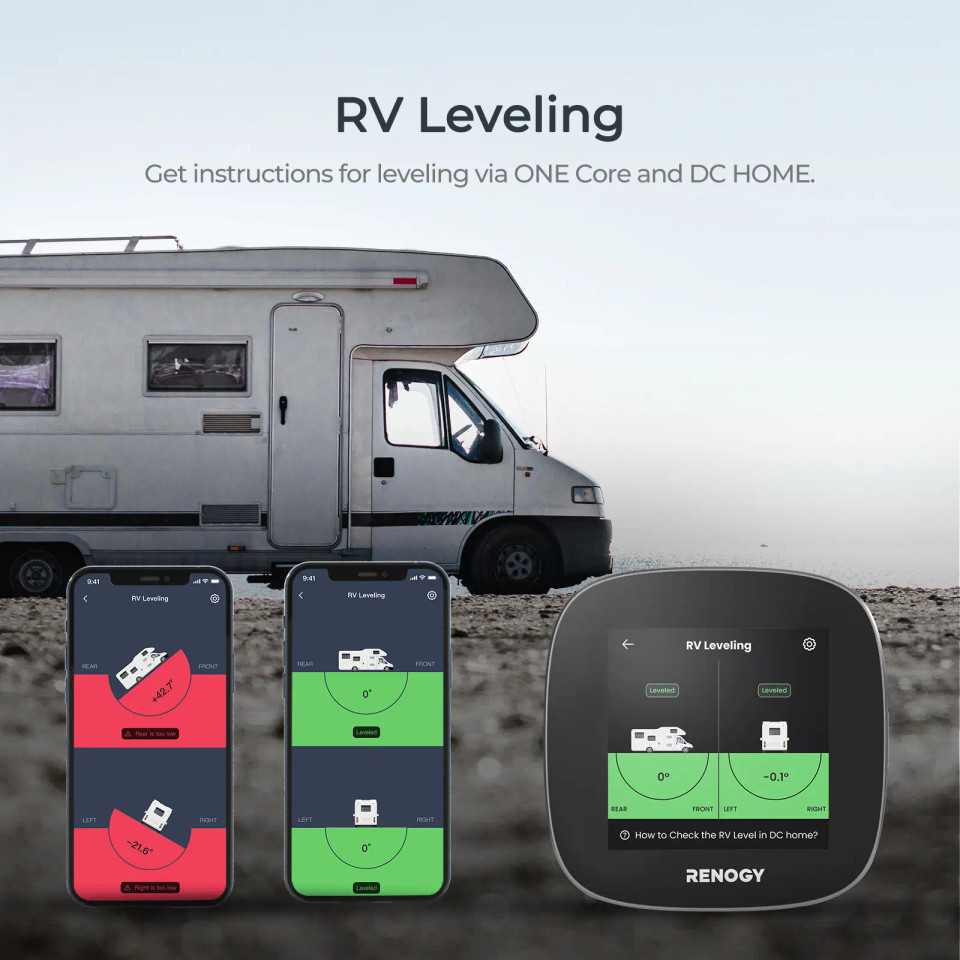

Need leveling for more comfort?
ONE Core assists you in adjusting your RV's position to achieve optimal stability, ensuring a comfortable and safe experience.
Built-in 6-axis leveling sensor
Highly accurate and responsive detection of changes in orientation and rotational movement.
Real-time RV leveling status
Instant and accurate updates about your vehicle's stability on both ONE Core Panel and DC Home App.
Smart Automation
Security
Make it a smart home
ONE Core also serves as a smart home hub, allowing you to connect your smart home appliances like door entry alert or climate sensors, enjoy added convenience and security of home automation.
Effortless installation
Step 1
Complete a hole using a 55mm diameter punch and get all components of the device stand.
Step 2
With an embedded horizontal bubble, it's easy to achieve the horizontality of the device and avoid repeated leveling.
Step 3
Rotate, click clack, it's done.
Installation on Table
Step 1
Pull out the holder layer of the box.
Step 2
Raise up the support layer.
Step 3
Push back the holder layer and place One Core on it.
Renogy ONE M1 vs Renogy ONE Core
Package Includes
NOTE:
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or submit a ticket for troubleshooting assistance.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
Renogy ONE Core 1 x
| Quick Guide 1x
|
Power Cable 5m
| Mounting Screw M3.5 x14mm x4 (1 extra)
|
Specification
ELECTRICAL DATA |
|
|---|---|
Operating Voltage | 8-60 VDC (5 VDC for USB Type-C) |
Power Consumption at 12V | Operating, WiFi On, 100% illumination: 3.2 W |
Communication | Wi-Fi (IEEE 802.11b/g/n 2.4 GHz) |
Touch Screen | 4 inches (480 x 480p) |
Leveling Range and Accuracy | ±89°, 0.1° |
GENERAL DATA | |
Model | RSHGWSN-W02W-G1 |
Operating Temperature | -4℉ to 158℉ (-20℃ to 70℃) |
Operating Humidity | 0% to 95% RH |
Operating Altitude | Less than 5000m above sea level |
Installation | Flush mount or place on a table |

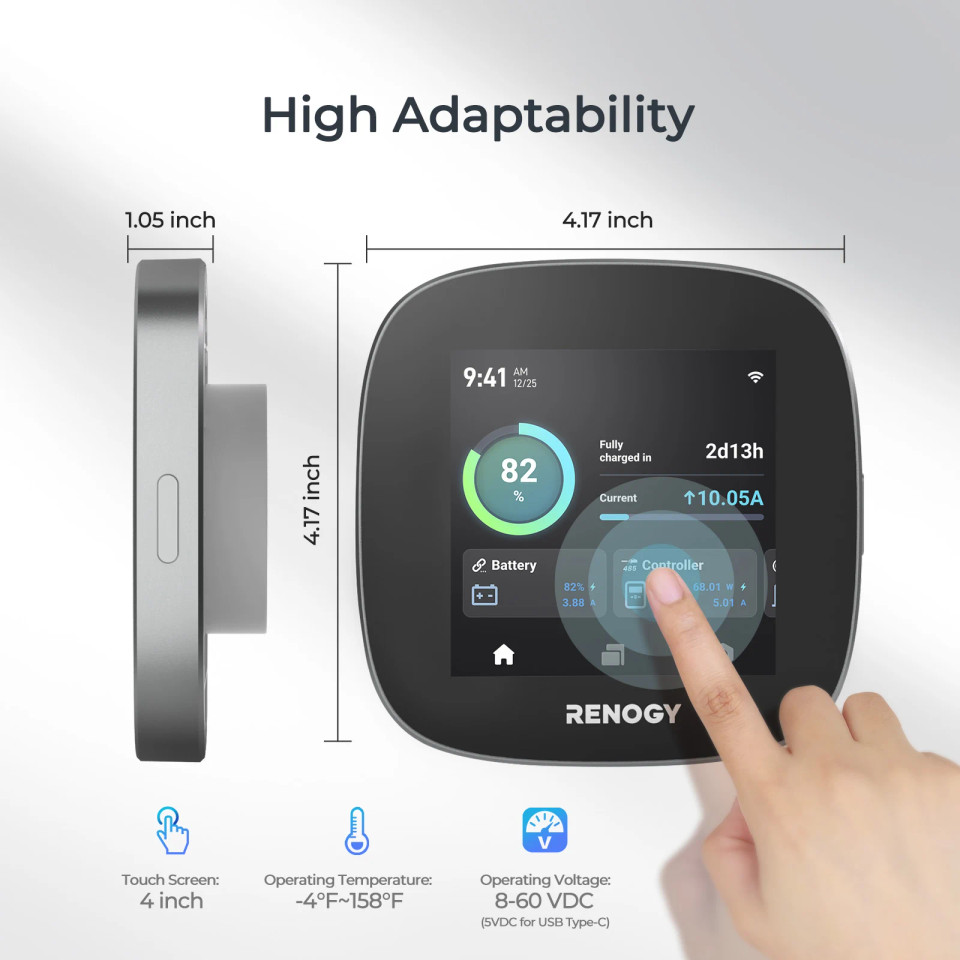

Dimensions | 4.17 x 4.17 x 1.05 in (106 x 106 x 26.6 mm) |
Weight | 0.28 lb (128g) |
Certification | CE, FCC, RoHS, TSCA, BQB, IC-ID |
Warranty | 2 years |
