Renogy 300W N-type compact Suitcase

300W Lightweight Portable Solar Suitcase

The most durable high-wattage solar suitcase with robust kickstands and N-type cells.

Ultimate Reliability with Impeccable Efficiency

Maximizing module potential with 25% cell efficiency while harnessing compact solar cell layouts for enhanced module efficiency.

Portable Power Anywhere

Parallel two panels to boost power and charge faster in high-demand outdoor scenarios.

RV

Shed

The Dynamic Power Boost for Existing Solar Systems

Please ensure that the PV input voltage remains lower than the controller solar input voltage.

The Dynamic Power Boost for Existing Solar Systems

Please ensure that the PV input voltage remains lower than the controller solar input voltage.

Robust Structure

Uninterrupted Output

Robust Structure for Consistent Panel Output

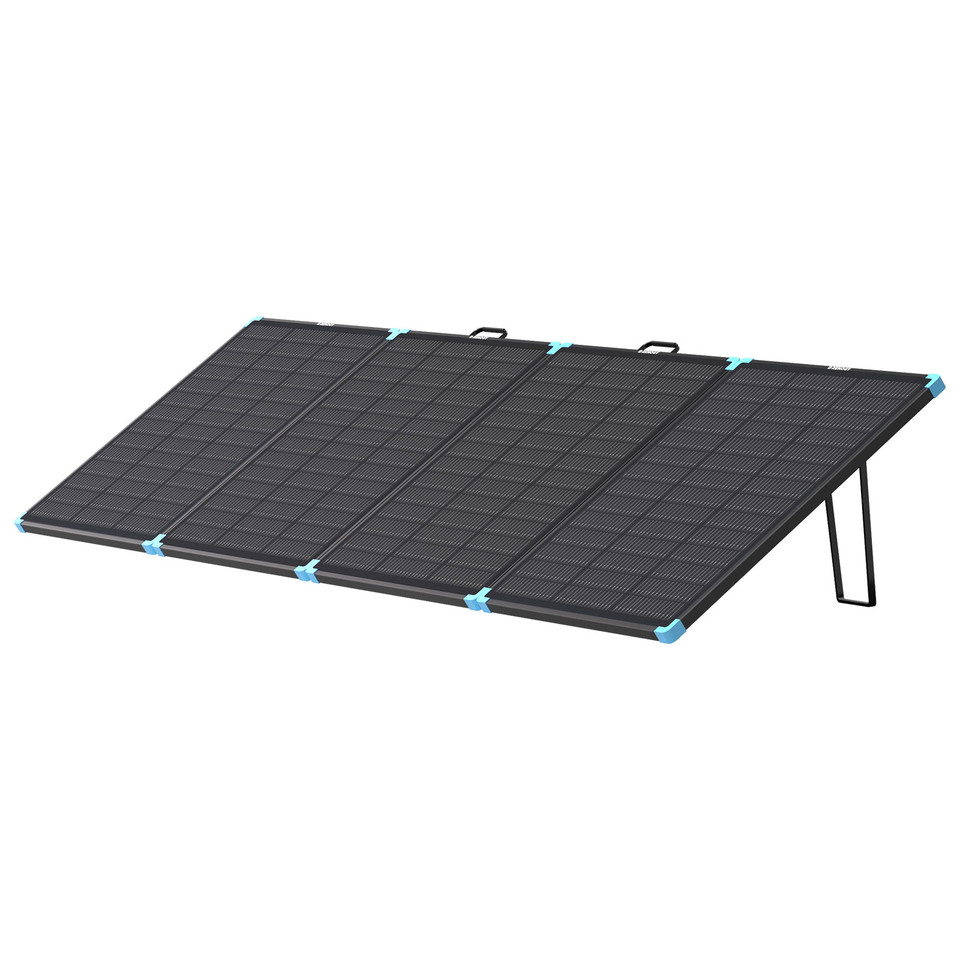

Sturdy, rust-resistant kickstands allow maximum power generation.

Uninterrupted Brilliance in Partial Shading

Parallel wiring ensures individual shadows won't diminish the overall efficiency of the interconnected panels.

Unyielding Strength for Extended Outdoor Reliability

Protective Case

Easily portable for transportation, offering impact protection.

Fiberglass Reinforcement

Delivers exceptional durability even in the face of light hailstorms.

Corner Protection

Ensures longevity and resilience against wear and tear.

ETFE Coating

Provides enhanced durability and weather resistance.

Instant Backup Power

Pairs seamlessly with a portable power station for plug-and-play emergency backup power.

Compatible with Most Power Stations

Ensure the portable power station’s specs match the solar panel’s DC input range.

300W N-type compact Suitcase

Module Performance

Max Power at STC: 300W

Module Efficiency: 17.0%

Open Circuit Voltage: 30.03V

Short Circuit Current: 12.6A

Optimum Operating Voltage: 25.2V

Optimum Operating Current: 11.9A

Maximum System Voltage: 600VDC

Maximum Series Fuse Rating: 15A

Operating Temperature: -40°F~185°F / -40℃~85℃

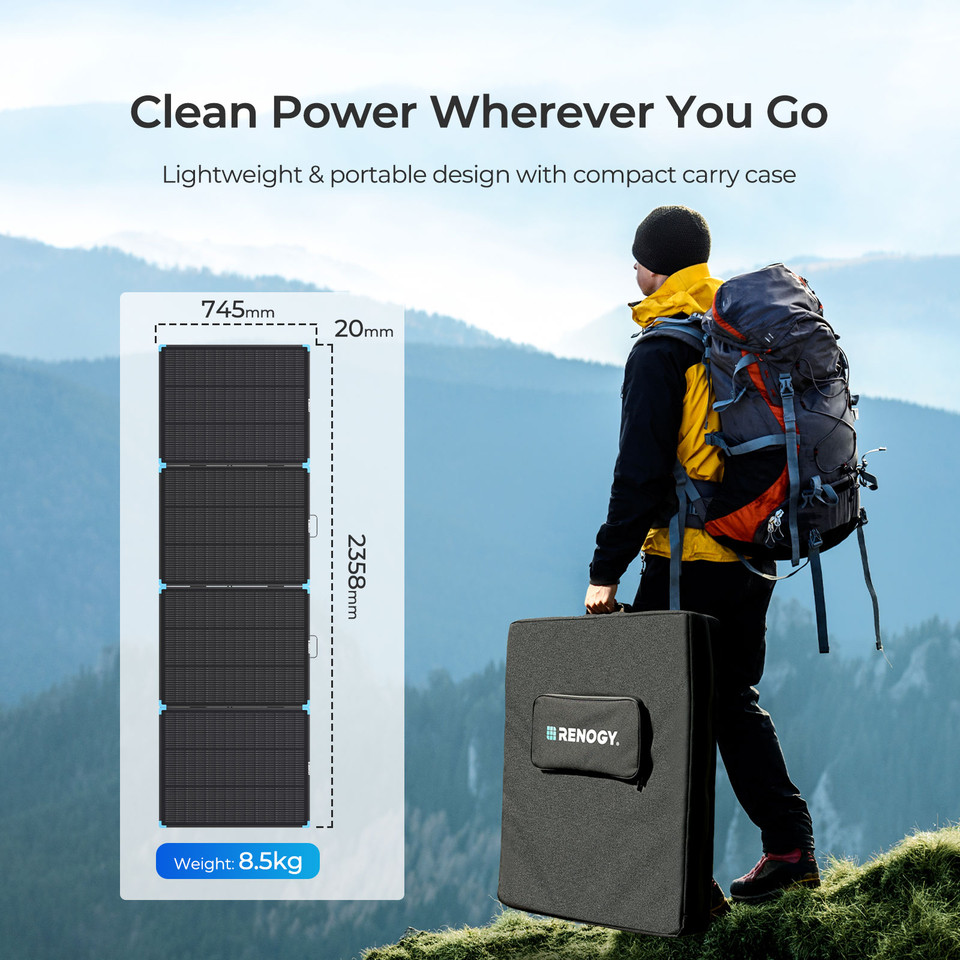

Dimensions: 2358*745*20mm（92.8*29.3*0.8in）

Dimensions（folded）: 588*745*80mm （23.2*29.3*3.2in）

Weight: 8.5KG/18.74 lbs

Features_: Just 18.74 lbs, smaller and lighter than before.

Features_: Industry-leading efficiency with durable fiberglass construction.

Features_: It is IP67-rated with robust kickstands built for outdoor use.

Features_: 3-Year warranty on materials and workmanship.

Features_: Sets up in one minute and works with most portable power stations.
