Renogy 200W Solar Panel Blanket

200W Portable Solar Panel Blanket

The lightest, most efficient solar blanket with the highest-performance N-Type cells.

Fits in Tight Trunk Spaces

Folds down to the size of a travel backpack.

The Power of N-Type Solar Cells

Maximizing efficiency and longevity with industry-leading technology.

Fully Adjustable & Removable Shoulder Strap

Store the strap in the zippered outer pocket when not in use.

Multi-Device Charging Made Easy

Equipped with 1 USB-C (45W Max) and 2 USB-A (18W Max) ports for flexible charging options.

Flexible Installation Options

Mount on the side of your truck camper, vehicle windshield, lay flat on the ground, or hang from a rope.

Charge Power Stations

Charge Batteries

The Dynamic Power Boost for Existing Solar Systems

Please ensure that the PV input voltage remains lower than the controller solar input voltage.

The Dynamic Power Boost for Existing Solar Systems

Please ensure that the PV input voltage remains lower than the controller solar input voltage.

Compatible with Most Power Stations

Seamless integration with most power station brands, or simply add an adapter cable for charging.

Perfect Pairings for Optimal Performance

For battery connections, we recommend using an MPPT controller, paired with the adaptor cable and extension cable to achieve unlimited charging distance.

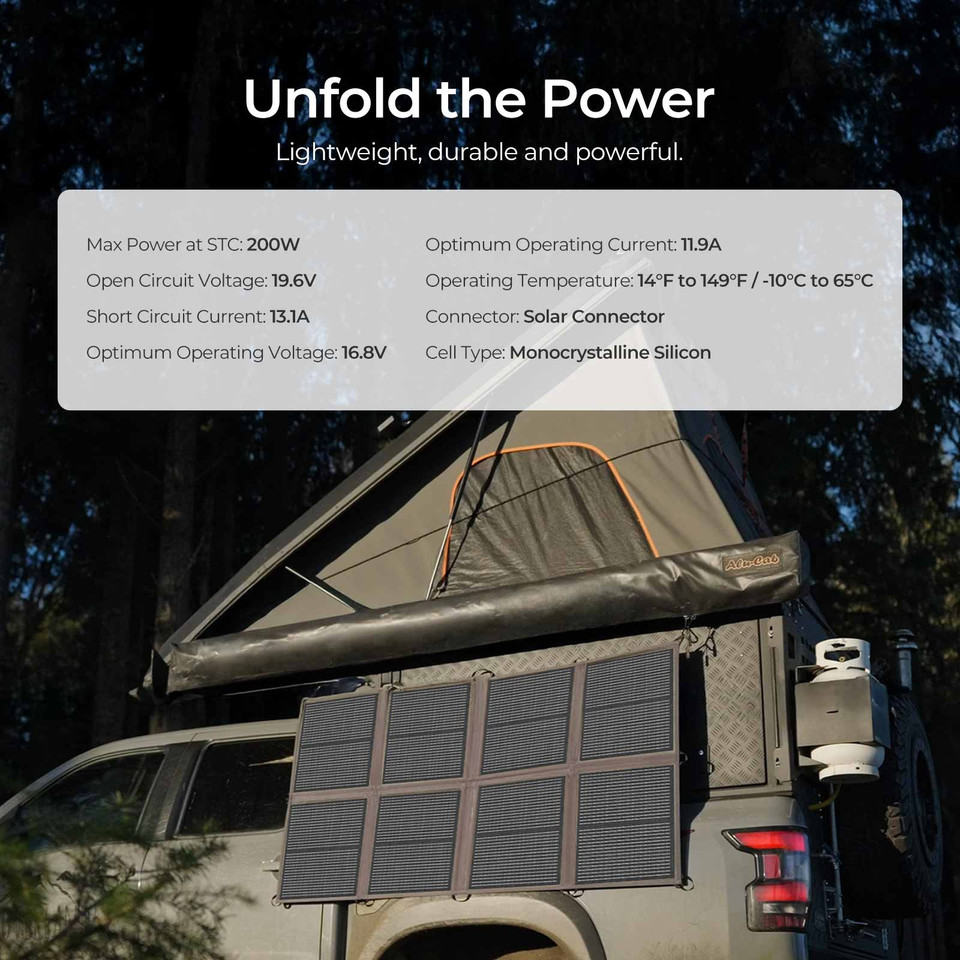

Basic information

Max Power at STC

200W

Open Circuit Voltage

19.6V

Short Circuit Current

13.1A

Optimum Operating Voltage

16.8V

Optimum Operating Current

11.9A

Operating Temperature

-10°C to 65°C

Dimensions(fold)

410*390*78mm/16.14*15.35*3.07in

Dimensions(unfold)

1560*810*38mm/61.41*31.89*1.50in

Weight

4kg/8.82lbs

Output （solar connector）

TYPE-C

PD协议, 5V/3A, 9V/3A, 12V/3A, 15V/3A, 45W Max

USB1

QC协议, 5V/3A, 9V/2A, 12V/1.5A, 18W Max

USB2

QC协议, 5V/3A, 9V/2A, 12V/1.5A, 18W Max

Warranty & Certifications

Material and workmanship warranty

2 Years

Certifications

FCC,IC,PSE,CE,ROHS,TSCA,CA65
