Quad Shunt 4 x 25A Circuits

Description

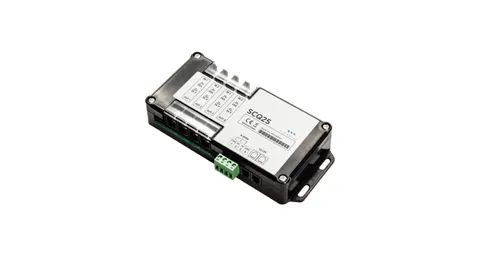

SCQ25 is an innovative shunt module for monitoring individual consumers and generator with 4x current sensors up to 25A each. For 12V and 24V systems.

Voltage inputs

• Per channel 0,01 – 25 A

• Resolution 0,01 A

• Accuracy ± 0,6 %

• Sampling rate 100 ms

Maximal current

• Continuous 25 A

• Peak current (<1 min) 35 A

• Peak current (<5 sec) 50 A

• Voltage drop at 25 A 35 mV

• Maximum voltage on connections 35 V

Connectivity Up to

• Current sensors 4

• Relay Common Input (COM) 1

• Relay Output Normaly Open (NO) 1

• Relay Output Normaly Closed (NC) 1

• SiCOM RJ9 Sockets 2

Installation and Dimension

• Dimensions (length x width x depth) 182 x 80 x 32 mm

• Weight 230 g
