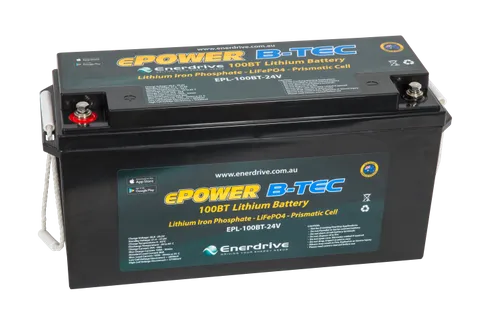

Enerdrive B-TEC 100amp / 24v LiFePO4 Battery BT
AU$3240.00
Description
The Enerdrive Enerdrive B-TEC battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;
Battery Capacity
Battery Voltage
Battery Current (Amps)
Battery State of Charge (SOC)
Battery State of Health (SOH)
Battery Status
Individual Cell Voltage
Battery Temperature
Battery Cycles
Battery Alarms
Battery Event Information
Battery Management System
The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY
https://enerdrive.com.au/product/epower-b-tec-24v-100ah-lithium-battery/
Specifications
Normal Specification | EPL-100BT-24V |
|---|---|
Nominal Voltage | 25.6V |
Nominal Capacity | 100Ah |
Cycle Life (DOD – 80% under controlled conditions) | >2500 Cycles |
Standard Charge Specification (Lithium profile charger required) | |
Battery Charge Temperature | 0 ̴ 45°C |
Normal Charge Voltage CV/CC* | 28.80 ̴ 29.20V |
Standby (Float) Voltage | 27.00 ̴ 27.60V |
Maximum Charge Current | 50A @ 25°C for 30mins |
Recommended Charge Current for Maximum Life | ≤33A |
Standard Discharge Specification | |
Battery Discharge Temperature | -20 ̴ 60°C |
Battery Output Voltage Range | 22.00 ̴ 29.20V |
Maximum Discharge Current | 100A @ 25°C ± 5°C for 30mins |
Pulse Discharge Current | 450A for 1.0s |
Discharge Cut-off Voltage | ≤22.40V |
Circuit Protection | The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery. |
Over-Charge Protection | |
Over-charge Protection Per Cell | 3.90V ± 0.03V |
Over-charge Release Per Cell | 3.60V ± 0.05V |
Over-charge Release Method | Discharge below release voltage |
Over-Discharge Protection | |
Over-discharge Protection Per Cell | 2.80V ± 0.05V |
Over-discharge Release Per Cell | 3.20V ± 0.05V |
Over-discharge Release Method | Apply Charge/Voltage ≥25.6V |
Over Current Protection | |
Discharge Over Current | 110A for 30s – 450A for 1s |
Protection Reset Time | 5s Auto Release |
Over Current Release Method | Disconnect Load |
Over Temperature Protection | |
Battery Discharge Over Temperature | Protection to 65°C ± 5°C |
Release at 50°C ± 5°C | |
Battery Charge Over Temperature | Protection to 55°C ± 5°C |
Release at 45°C ± 5°C | |
Short Circuit Protection | Auto release after 5s |
Mechanical Characteristics | |
Dimensions | Length 485mm |
Width 170mm | |
Height 245mm | |
Weight | Approx 25.0 Kg |
Storage Information | |
Temperature & Humidity Range | ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH |
≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH | |
Self-discharge Rate | ≤ 3% Per Month |
