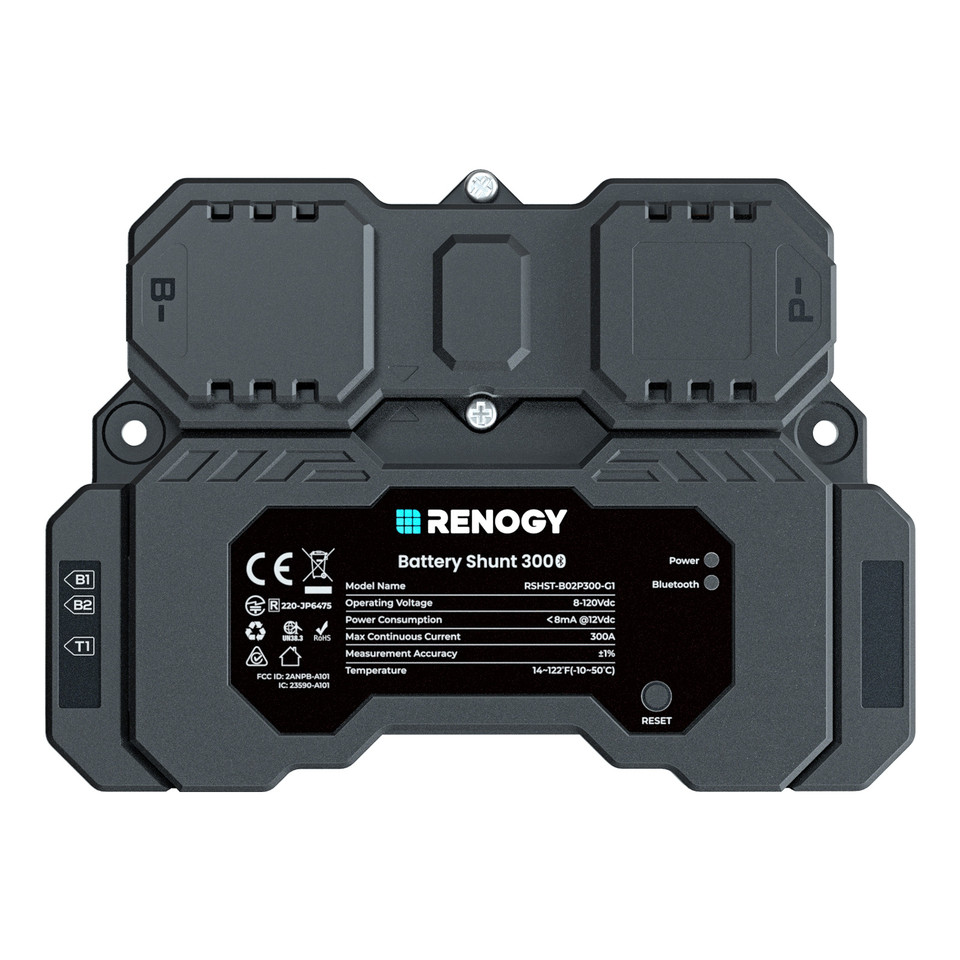

CORE 300A Battery Shunt with Bluetooth

Check Your Battery Charging Level Anytime Anywhere

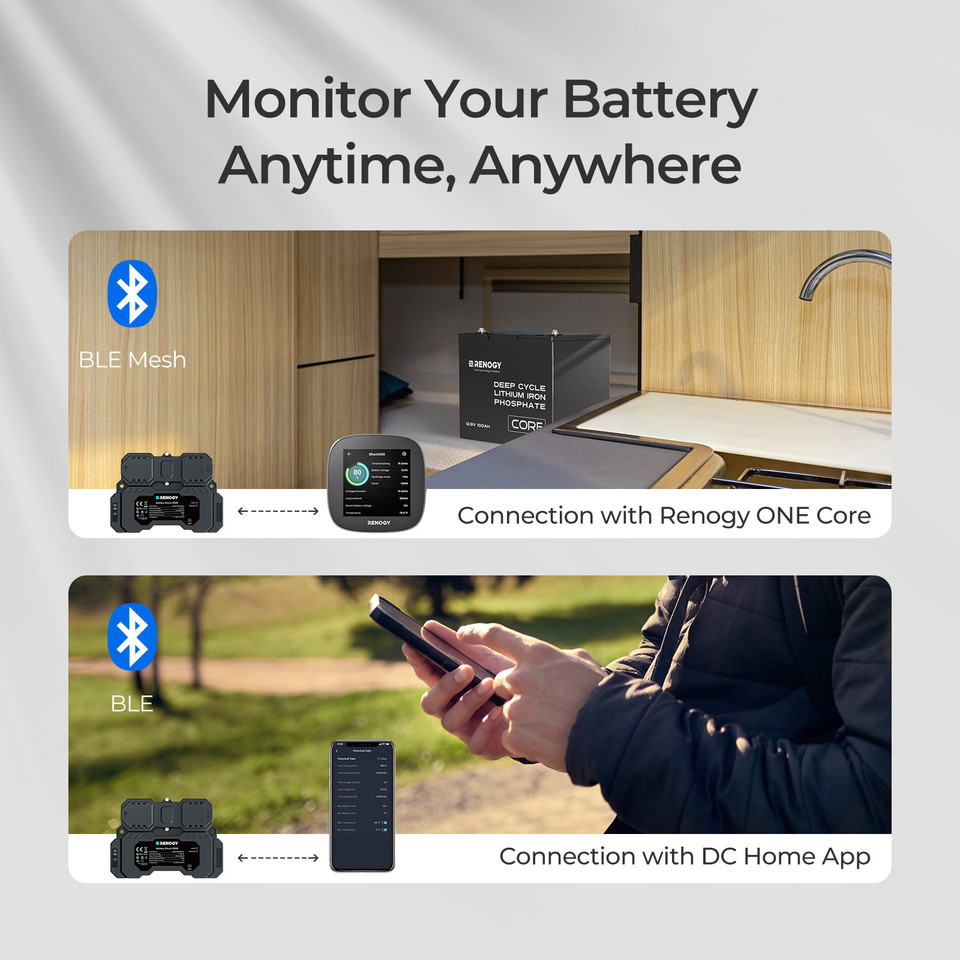

Ensures precise battery monitoring via the Renogy ONE Core and DC Home App.

Data Analysis

Batteries Compatibility

Trusted Performance

Temperature Sensor

Track Battery Data Performance Over Time.

The Shunt 300 helps record historical data via Renogy ONE Core and DC Home App.

5-Minute Installation

Fast Connection

Quick Setup

Effortless Installation in 5 Minutes

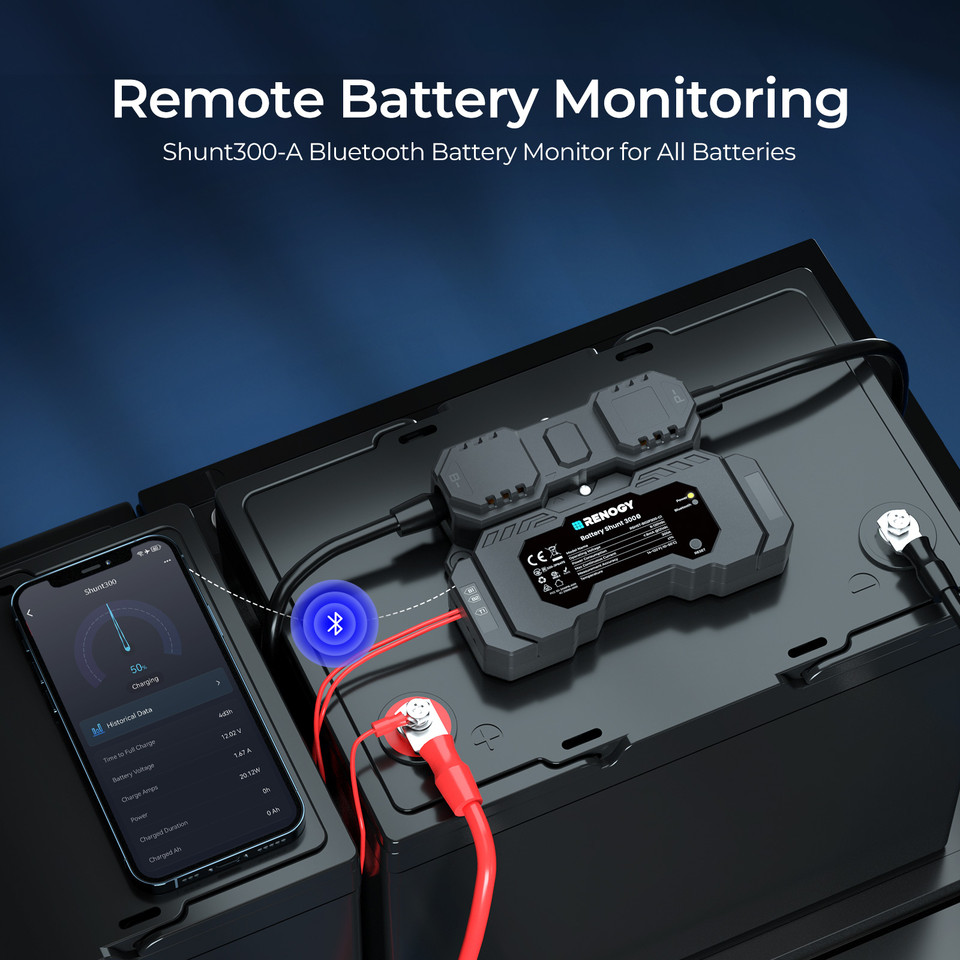

It can be placed on top of the battery or securely mounted on the wall with screws. The connection points feature protective covers to effectively safeguard against any loosening caused by various movements.

Support Multiple Battery Voltage Platforms

The adaptability ensures that the Shunt 300 can seamlessly integrate into various power setups, making it a dependable choice for a broad spectrum of applications and energy needs.

Package Includes

battery shunt Only option

• Battery Shunt 300 x 1

• Quick Guide x 1

• Mounting Screws x 3

• B+ Wires (1 m) (22 AWG) × 2

• Temperature Sensor (1.5 m) × 1

ELECTRICAL DATA

Product Name: Smart Shunt 300

Model Name: RSHST-B02P300-G1

Power Supply: 8 - 120 VDC

Power Consumption: <0.1 W

Communication: Bluetooth LE and BLE Mesh

Max continuous current: 300A

Max peak current: 500A(<10s)

Current accuracy: ±1%

Current Resolution: 0.01 A

Battery Capacity: 1 - 6500Ah

Voltage Input Range: 8 - 60V

Voltage input resolution: 10 mV

Temperature sensor range: -20~80℃

Temperature sensor accuracy: ±1%

Operating Temperature: -4℉~122℉(-20 ℃ to 50 ℃)

Operating Humidity: 0% to 95% RH

Operating Altitude: Less than 2000m above sea level

Installation: mounted on the wall

Battery connection: M10 bolts

Weight: 0.57lb (260g )

Dimensions: 5.27 x 3.82 x 1.22 inch (134 x 97 x 31 mm)

Warranty: 1 year

Certifications: CE, FCC ID,IC ID,RCM,TSCA, RoHS,UN38.3,TELEC
